Crucial T705 2TB overview
The Crucial T705 2TB is a high-performance M.2 2280 NVMe solid-state drive designed for a PCIe 5.0 x4 connection. This BYT01 record covers the non-heatsink CT2000T705SSD3 model using official Crucial documentation. It is an evidence-based specification record rather than a hands-on review, and no result below should be interpreted as a measurement performed by BYT01.
Official Crucial T705 performance limits
Crucial rates the 2TB model for sequential reads up to 14,500 MB/s and sequential writes up to 12,700 MB/s. Published random performance reaches up to 1,550K read IOPS and 1,800K write IOPS. These are manufacturer maximums under defined conditions, not guaranteed results for every computer. Performance varies with firmware, motherboard, processor, workload, queue depth, free capacity, cache behavior, cooling and benchmark method.
A PCIe 5.0-capable M.2 slot and suitable platform are required to approach the upper advertised range. The Crucial T705 is backward compatible with PCIe 4.0 and PCIe 3.0 systems, but the older interface reduces available bandwidth. Buyers should verify that the selected socket supports PCIe NVMe storage and that sharing rules do not disable another slot or reduce graphics-lane allocation.
Crucial T705 cooling and installation
The CT2000T705SSD3 is the version supplied without the large factory heatsink. Crucial states that non-heatsink T705 models must be installed with a motherboard or alternative heatsink to achieve optimal performance. The copper-clad product label should not be removed when installing an in-motherboard heatsink. Clearance, airflow and the motherboard installation instructions remain important, especially in compact systems.
The non-heatsink drive measures about 80 × 22 × 3.8 mm and weighs approximately 0.35 oz according to the product flyer. The common M.2 2280 footprint does not by itself guarantee compatibility. Confirm socket length, keying, supported PCIe generation, heatsink clearance and firmware support before purchase.
Memory, workloads and DirectStorage
Crucial describes the T705 as using 232-layer TLC NAND and supporting Microsoft DirectStorage with GPU decompression. The published positioning includes demanding games, content creation and heavy workloads. Those descriptions indicate intended uses rather than a promise of a specific application gain. Loading time and responsiveness depend on the full system, software path and workload, and an extremely fast sequential result may not translate directly into the same improvement in every task.
Endurance and warranty
The 2TB model is rated for 1,200 TBW. Crucial states a five-year limited warranty or coverage until the published maximum total bytes written is reached, whichever occurs first. Warranty validation may depend on SMART data, purchase evidence and regional terms. Users should keep firmware current using a supported utility, monitor drive health and maintain independent backups because performance specifications and warranty coverage do not eliminate failure risk.
Crucial T705 buying guidance and evidence status
The Crucial T705 2TB suits buyers with a confirmed PCIe 5.0 platform, suitable cooling and workloads that can benefit from high storage bandwidth. It may offer less practical value in a PCIe 4.0-only system or when local pricing is far above proven alternatives. Compare the official Crucial T705 product flyer, motherboard documentation and other verified BYT01 product records. No local price is approved here until the seller, currency, direct link and verification date are recorded.
Product record and buying decision
This record brings published specifications, dated price evidence and testing status together without turning them into an untested recommendation.
Documented specifications and limits
- Brand
- Crucial
- Model
- T705 2TB without heatsink
- SKU
- CT2000T705SSD3
- Market
- Global official specification
- Availability at verification
- Current availability not verified
- Compatibility and interface
- M.2 NVMe PCIe 5.0 x4 SSD; backward compatible with PCIe 4.0 and 3.0 at reduced interface speeds; DirectStorage support.
- Power or capacity
- 2TB capacity; up to 14,500MB/s sequential read, 12,700MB/s sequential write, 1,550K/1,800K random read/write IOPS; 1,200TBW.
- Dimensions or form factor
- M.2 2280 form factor; non-heatsink model approximately 80 x 22 x 3.8mm.
- Published warranty
- Five-year limited warranty or until the 1,200TBW endurance limit, whichever occurs first.
- BYT01 evidence status
- تحليل قائم على الأدلة
Before buying
- Match the name, SKU and region to the retailer page and box.
- Reopen the price URL and verify seller, stock and shipping cost.
- Verify BIOS, QVL, dimensions, power and connectors against the rest of the build.
Decision actions
Sources and update log
2026-08-25 | Official specifications verified | https://www.crucial.com/content/dam/crucial/ssd-products/t705/flyers/b2c/crucial-t705-b2c-product-flyer-en.pdf
Evidence limit: this is a product record, not a hands-on review or numeric rating. Future measurements must disclose the sample source, method, conditions and repeatable results.
Same-category records to compare
These records share a category; this alone does not establish suitability for your needs or budget. Compare intended use, configuration and upgrade limits before choosing. Prices, when shown, are dated snapshots, not current offers or stock confirmation. A price difference is not a performance or value verdict.
| Product | Dated price snapshot | Snapshot difference | Snapshot date | Documented compatibility | |
|---|---|---|---|---|---|
 Biwin M350 1TB NVMe PCIe 4.0 79 days ago | 849.00 SAR | Not comparable | 2026-08-12 | M.2 2280; PCIe Gen4 x4 NVMe; single-sided; compatible with the two M.2 slots on ASUS Prime B650M-A II-CSM. | Compare |
 Samsung 990 PRO 2TB NVMe SSD | — | Not comparable | — | M.2 2280 SSD; PCIe Gen 4.0 x4; NVMe 2.0; backward compatible with PCIe 3.0 at reduced interface speed. | Compare |

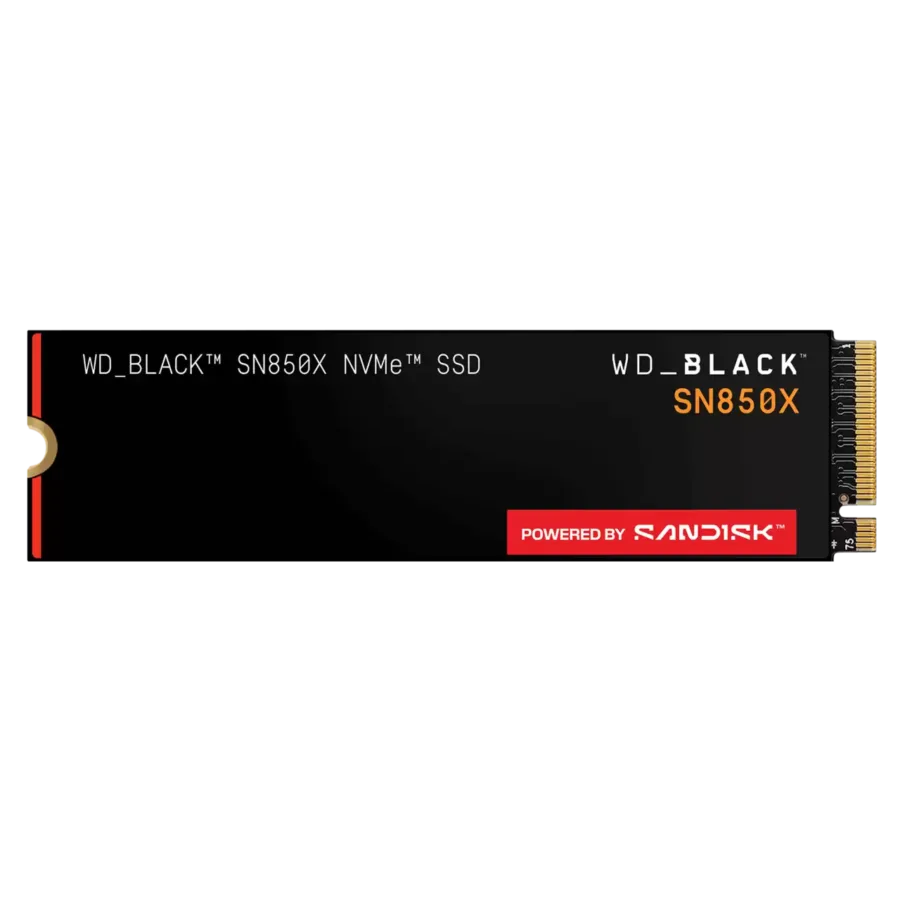

 WD_BLACK SN850X 2TB NVMe SSD | — | Not comparable | — | M.2 2280, M-key, PCIe 4.0 x4 NVMe; backward-compatible with PCIe 3.0 at reduced bandwidth. Windows 10+; PS5 requires the heatsink model or a compliant added heatsink. | Compare |
Reviews and testing
No qualified hands-on review is linked to this record yet, so no score or Pros/Cons are displayed.
Product-record FAQ
Is verified pricing available for Crucial T705 2TB PCIe 5.0 NVMe SSD?
No verified price is available in this product record. Check the official or retailer source before buying.
Did BYT01 test this product hands-on?
Do not assume hands-on testing unless a qualified review and repeatable test method are linked. This record separates official specifications and market evidence from physical testing.
Does a specification match guarantee compatibility?
No. Use the compatibility builder, then verify motherboard support, BIOS, QVL, dimensions, connectors and the case manual before paying.
