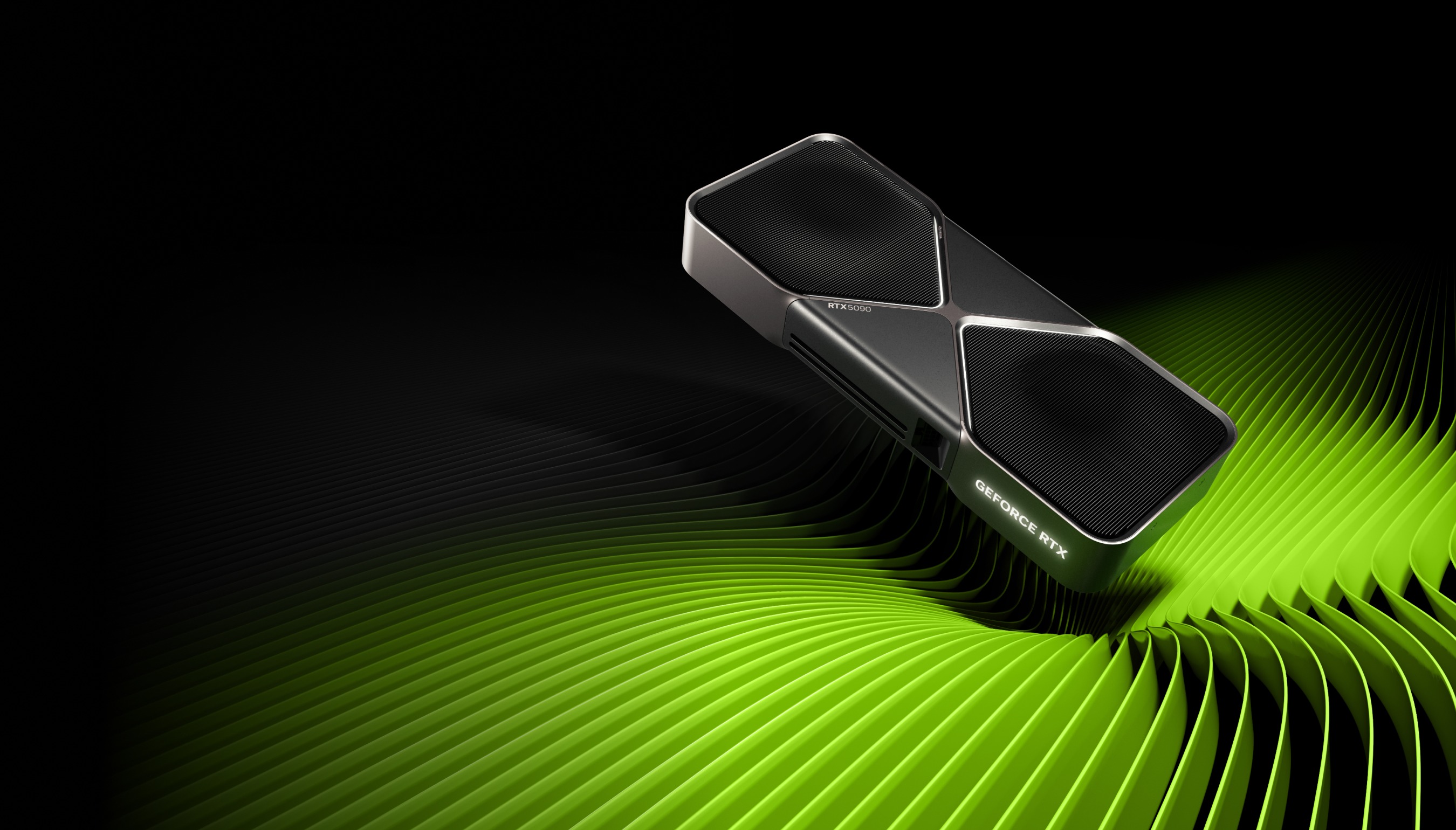

NVIDIA GeForce RTX 5090 Founders Edition overview
The NVIDIA GeForce RTX 5090 Founders Edition is a Blackwell-generation desktop graphics card with 21,760 CUDA cores and 32 GB of GDDR7 memory on a 512-bit interface. NVIDIA lists fifth-generation Tensor cores, fourth-generation ray-tracing cores and PCI Express Gen 5 support.
This BYT01 page is an evidence-based product record derived from NVIDIA’s official specifications. It is not a hands-on review. BYT01 has not measured frame rates, rendering speed, AI throughput, temperature, acoustic output, power consumption or overclocking behavior for a physical sample.
RTX 5090 engine and memory specifications
NVIDIA publishes a 2.01 GHz base clock and a 2.41 GHz boost clock for the Founders Edition. The card uses 32 GB of GDDR7 memory with a 512-bit interface. These are manufacturer specifications and do not establish sustained clocks or application performance in a specific computer.
The official feature list includes DLSS 4, Reflex 2, Resizable BAR, DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6, AV1 encoding and decoding, three ninth-generation NVENC encoders and two sixth-generation NVDEC decoders. Software support and feature behavior depend on compatible drivers, applications and game implementations.
Display outputs and resolution support
The Founders Edition provides three DisplayPort outputs and one HDMI output, with support for up to four monitors. NVIDIA lists DisplayPort 2.1b with UHBR20 and HDMI 2.1b capabilities. Maximum advertised combinations use Display Stream Compression and depend on bandwidth, display support, cables and settings.
NVIDIA states a maximum digital resolution of 4K at 480 Hz or 8K at 165 Hz with DSC for supported configurations. This is an output capability rather than evidence that every game can render at those frame rates.
Dimensions, slots and case clearance
The Founders Edition card measures 304 mm long and 137 mm wide. NVIDIA labels the card itself as a two-slot design, while its system-preparation guidance asks builders to reserve three expansion slots for airflow and lists a 61 mm clearance envelope.
NVIDIA also advises planning approximately 36 mm of additional space for power cables. Case compatibility must account for the card, connector bend radius, side panel, front fans or radiators and any support bracket.
Power and thermal requirements
NVIDIA specifies 575 W total graphics power and a maximum GPU temperature of 90°C. The main specification table lists 1000 W required system power based on a system configured with a Ryzen 9 9950X, while separate preparation guidance mentions an 850 W minimum and warns that requirements vary with the full system.
The official power options include the supplied multi-8-pin adapter or a PCIe Gen 5 power cable. The exact cable arrangement and power-supply capacity must follow NVIDIA and PSU-vendor instructions. Never mix modular PSU cables unless the power-supply manufacturer explicitly confirms compatibility.
Founders Edition evidence limits
NVIDIA states that the specifications on its page describe the Founders Edition or reference design. Add-in-board partner models can differ in dimensions, clocks, cooling, power limits and connector layout. Match the exact model before applying this record to another RTX 5090 card.
Marketing performance charts can depend on selected games, settings, resolution and DLSS features. This product record therefore does not convert NVIDIA’s relative charts into independent BYT01 benchmark results.
RTX 5090 buying checks
Before purchase, verify the exact Founders Edition identity, case clearance, expansion-slot space, cable routing, PSU capacity, connectors, motherboard slot layout and display requirements. Also confirm local warranty and seller terms.
Review the official NVIDIA GeForce RTX 5090 specifications and compare them with other verified BYT01 product records. No Saudi, Egyptian or other local price is approved until the retailer, currency, direct product URL and verification date are documented.
Product record and buying decision
This record brings published specifications, dated price evidence and testing status together without turning them into an untested recommendation.
Documented specifications and limits
- Brand
- NVIDIA
- Model
- GeForce RTX 5090 Founders Edition
- SKU
- RTX 5090 Founders Edition
- Market
- Global official specification
- Availability at verification
- Current availability not verified
- Compatibility and interface
- PCI Express Gen 5; 3× DisplayPort and 1× HDMI; up to four monitors; supplementary power via 1× 600W PCIe Gen 5 cable or included multi-8-pin adapter.
- Power or capacity
- 21,760 CUDA cores; 32 GB GDDR7; 512-bit memory interface; 575W total graphics power; 1000W required system power listed by NVIDIA.
- Dimensions or form factor
- 304 × 137 mm; Founders Edition form factor. Verify case clearance and power-cable bend space.
- Published warranty
- Verify NVIDIA regional Founders Edition warranty before purchase.
- BYT01 evidence status
- تحليل قائم على الأدلة
Before buying
- Match the name, SKU and region to the retailer page and box.
- Reopen the price URL and verify seller, stock and shipping cost.
- Verify BIOS, QVL, dimensions, power and connectors against the rest of the build.
Decision actions
Sources and update log
2026-08-25 | Official specifications verified | https://www.nvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090/ 2026-09-13 | Editorial fields, power context, dimensions and evidence limits verified | https://www.nvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090/
Evidence limit: this is a product record, not a hands-on review or numeric rating. Future measurements must disclose the sample source, method, conditions and repeatable results.
Same-category records to compare
These records share a category; this alone does not establish suitability for your needs or budget. Compare intended use, configuration and upgrade limits before choosing. Prices, when shown, are dated snapshots, not current offers or stock confirmation. A price difference is not a performance or value verdict.
| Product | Dated price snapshot | Snapshot difference | Snapshot date | Documented compatibility | |
|---|---|---|---|---|---|
 AMD Radeon RX 6750 XT | — | Not comparable | — | GPU-family record; reference power specifications do not replace board-partner requirements | Compare |
 AMD Radeon RX 9060 XT | — | Not comparable | — | GPU-family record; distinguish 8 GB and 16 GB variants; check exact board-partner requirements | Compare |
 AMD Radeon RX 9070 XT | — | Not comparable | — | PCIe 5.0 x16; DisplayPort 2.1a and HDMI 2.1b platform support; Windows 10/11 64-bit and Linux x86-64. Physical outputs, length and slot width vary by partner card. | Compare |
 NVIDIA GeForce RTX 3060 Ti | — | Not comparable | — | GPU-family record; distinguish GDDR6 from GDDR6X variants and verify partner SKU | Compare |
Reviews and testing
No qualified hands-on review is linked to this record yet, so no score or Pros/Cons are displayed.
Product-record FAQ
Is verified pricing available for NVIDIA GeForce RTX 5090 Founders Edition?
No verified price is available in this product record. Check the official or retailer source before buying.
Did BYT01 test this product hands-on?
Do not assume hands-on testing unless a qualified review and repeatable test method are linked. This record separates official specifications and market evidence from physical testing.
Does a specification match guarantee compatibility?
No. Use the compatibility builder, then verify motherboard support, BIOS, QVL, dimensions, connectors and the case manual before paying.
Source-checked specifications
- VRAM (GB)
- 32
- Graphics memory type
- GDDR7
- Published board/GPU power (W)
- 575
- Exact-card length (mm)
- 304
Manufacturer source · 2026-10-18 · Specifications, not BYT01 measurements.
Price and verification history
Each row is a dated snapshot from a direct retailer URL. Prices and availability may change. Automated checks preserve the last verified price when access is blocked or clear SAR data is unavailable.
No saved price snapshots yet.
